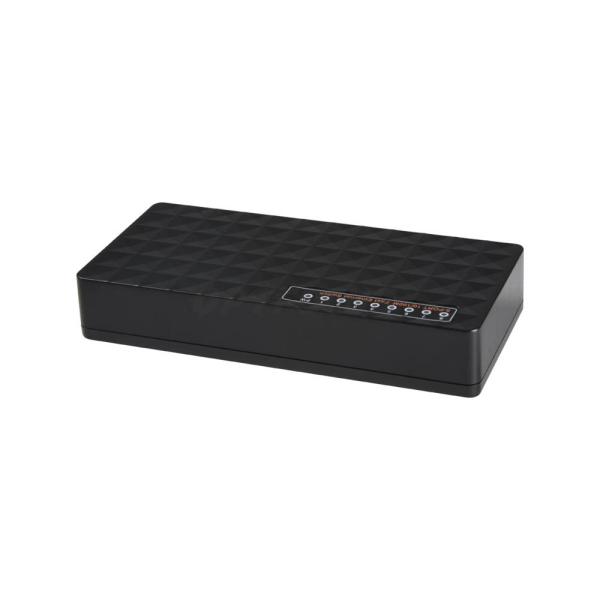

Fast Unmanaged 8 Port Ethernet Hub 10/100Mbps Network Switch
OFS-DT8
8ports 10/100M RJ45 Ethernet Switch
Feature:
*Support IEEE802.3X for full duplex mode operation
*10Base-T, 100 Base-T, and 100Base-FX Operation
*Support Flow control for full duplex mode operation and
backpressure for half duplex mode operation
*LED Status of Power on, Link and speed
*Full line speed capability of 148800 (14880) packets/sec for 100M
(10m)
*Automatic MDI/ MDI-X Configuration
*Communication distance: Not less than 100M
*Interface: 8 RJ45 Port
Technical Specifications
| Product Name | 8 ports 10/100M RJ45 Ethernet switch |
| Product Model | OFS-DT8 |
| Standards | IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX Fast Ethernet
ANSI/IEEE 802.3 Nway Auto-Negotiation IEEE802.3x Flow control |
| Chipset | IP178G |
| Frame filtering and forward rate | 10Mbps: 14880pps, 100Mbps: 148800pps |
| Switching capacity | 1G |
| Protocol | CSMA/CD |
| Transfer method | Store-and-forward |
| MAC address learning | Automatically learning, automatically Update |
| Network media(Cable) | 10Base-T:2-Pair UTP category 3, 4, 5,5e,6 cable (maximum 100m),
EIA/TIA-568 100Ù STP(maximum 100m), 100Base-Tx: UTP category 5, 5e
cable (maximum 100m), EIA/TIA-568 100Ù STP (maximum 100m) |
| Operating temperature | 0°C~40°C(32 F~104 F) |
| Storage temperature | -40°C~70°C(-40 F~158 F) |
| Operating humidity | 10%~90% non-condensing |
| Storage humidity | 5%~90% non-condensing |
Certifications
Customer Evaluation
FAQ
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date
of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low
cutoff 10V.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server
for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported.
The network management type we produce can support this function.
